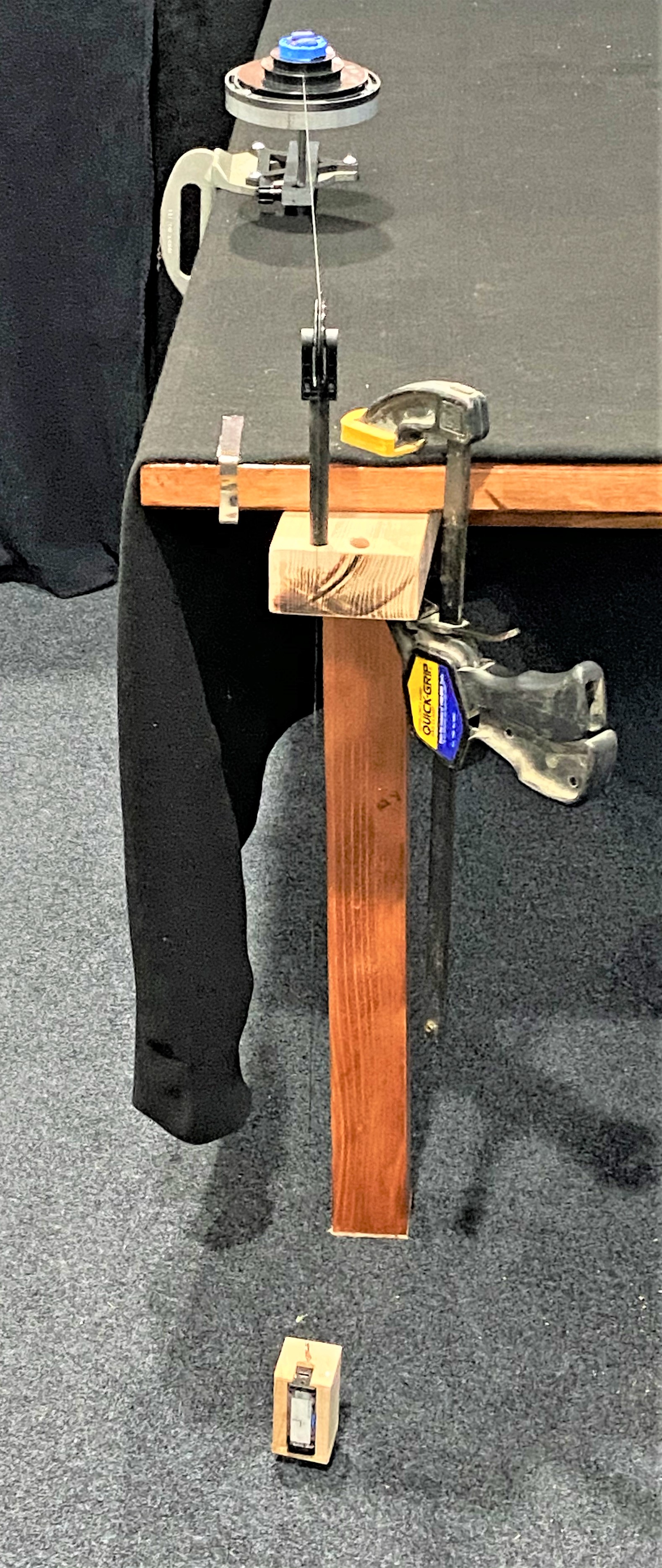

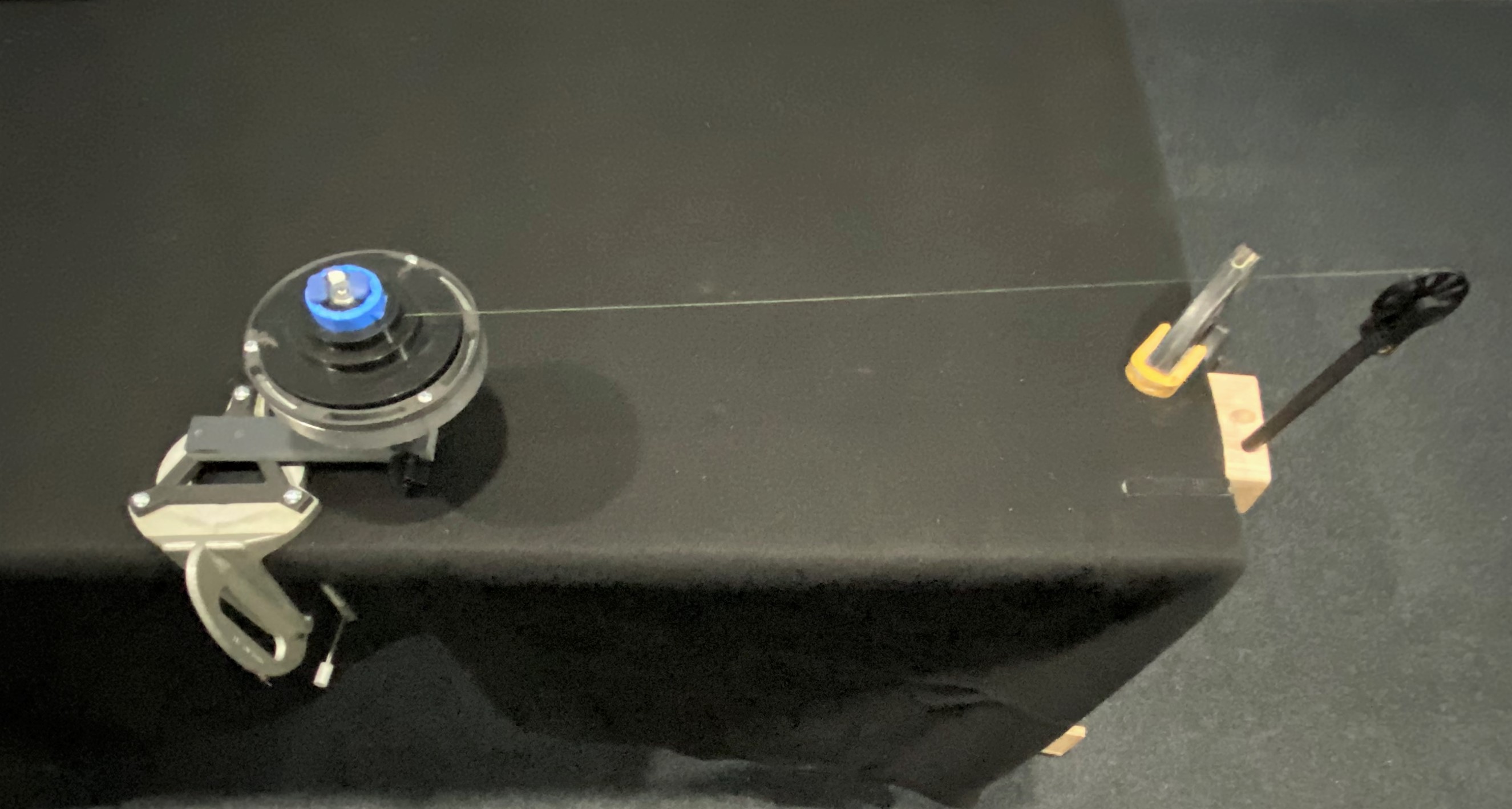

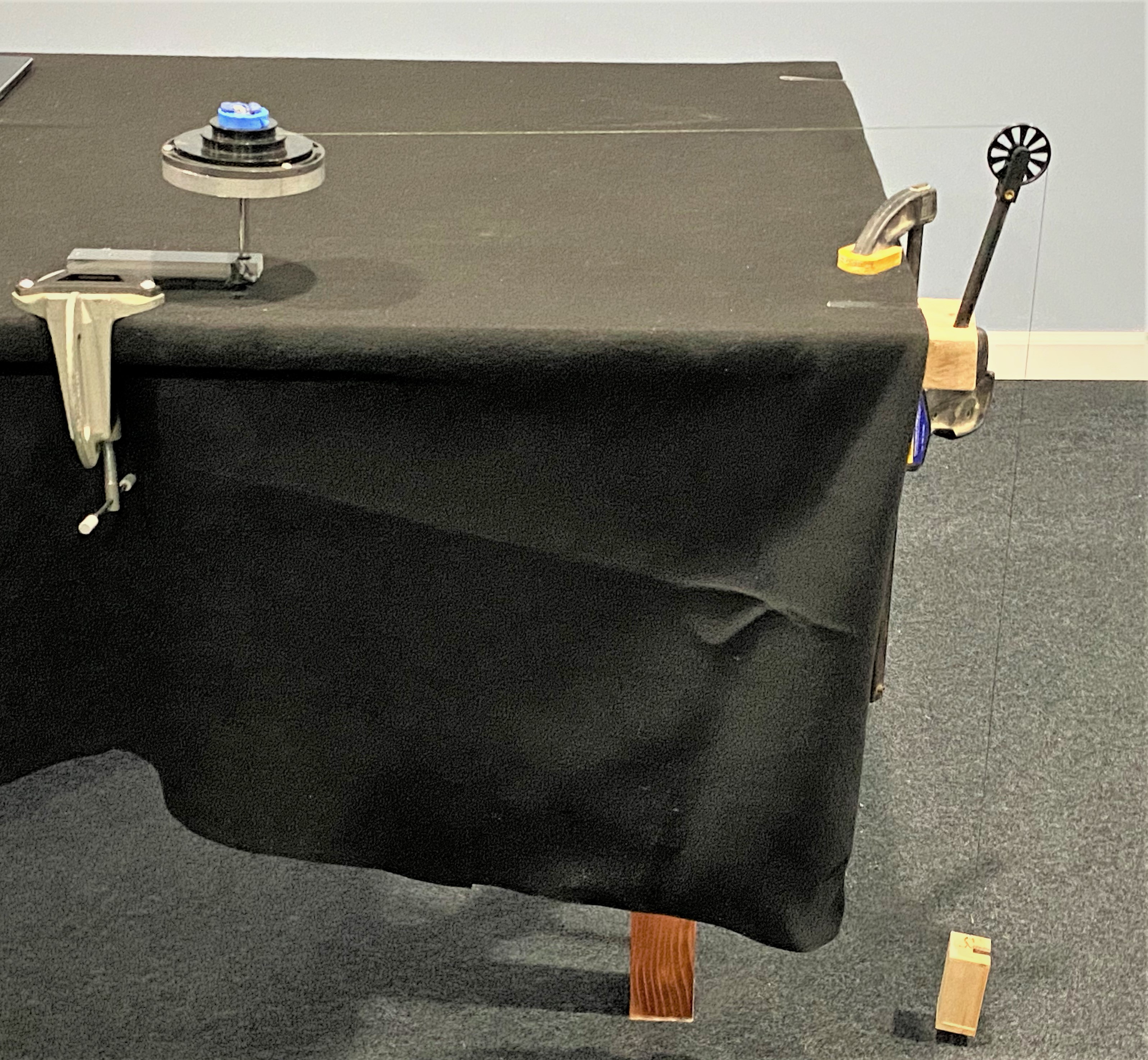

A string is wrapped around a wheel and axle, draped over a pulley, and attached to a hanging mass.  When the mass is released it accelerates down.  This acceleration is found.  The calculations for this lab are intensive.  There are conversions from inches to cm and a system of equations is solved using substitution. This is the Lab 5 Tier 3 Challenge Set-Up. This set-up presents an “error” in conducting the trial which affects the student’s result. The challenge is for the student to determine what Danny did wrong in conducting his trial and determining how the error impacted the results.

Download file includes the Video (MP4), the trial’s Data Files (a .csv and matching .csvp file) editable Lab Sheet (MS Word) for student use, and the Teacher’s Guide (PDF) for the instructor.

Users (instructors and students) must also download the BioForce Analytics Dashboard in order to use the data files. The Dashboard is free to download and can be found under the Resources Tab>Software Dashboard. The Dashboard is Windows and Mac compatible.
